Equipment for packaging bulk products of modular and stationary type

Support and training

Meridian 34 specialists carry out commissioning of modules and the comprehensive training of their personnel. We also conduct a detailed briefing of your staff and provide the customer with instructions and technical documentation.

Manuals and guidelines

"Methodological recommendations for the calibration of the weight-dosing complex".
"Safety Instructions".
"Methodological guide for the conservation of equipment".
"Methodological guide on how to prepar equipment for transportation".
"Instructions for assembly and preparation for installation."

This type of equipment allows for simultaneous reception and packaging of mineral fertilizers from any type of transport (rail, road, water transport).
Density of product is adjustable, standard model is configured for 0.47 – 1.9 t / m3 and a fraction size of 1-5 mm.
As a container, a polypropylene container of the “BIG-BAG” type “two rigging loops” with a polyethylene liner is usually used.
For small packaging, a 50 kg polypropylene bag with a polyethylene liner for sewing or a valve polyethylene bag with a liner is used.
All sets of equipment are very technological, easy to operate and equipped with a liner welding system.
It is allowed to use equipment for packaging any other bulk material.
The automation of the equipment significantly simplifies and facilitates the management of the installation, minimizes the weighing error and allows for remote process control via the Internet.

The warranty period is 12 months.

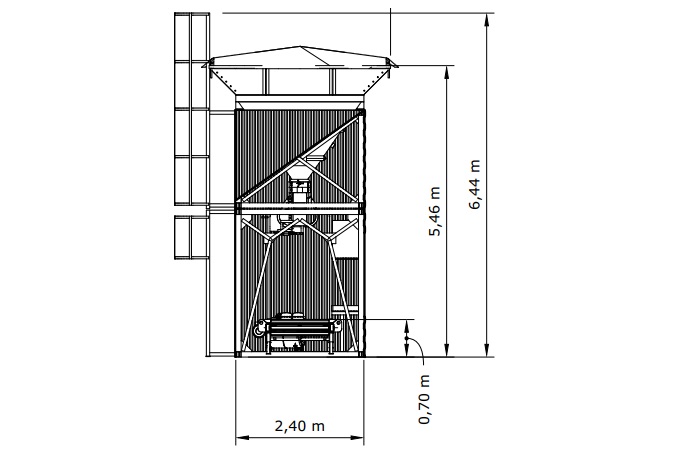

  • 32133
  • 2121212

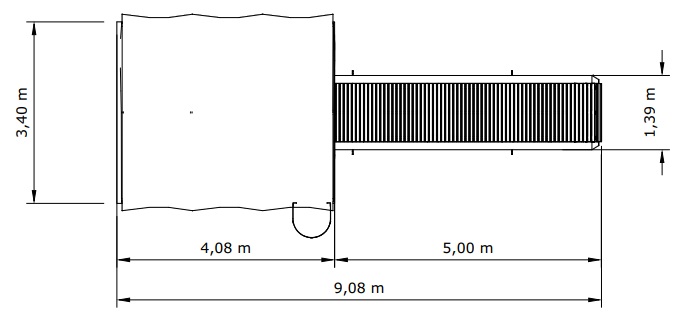

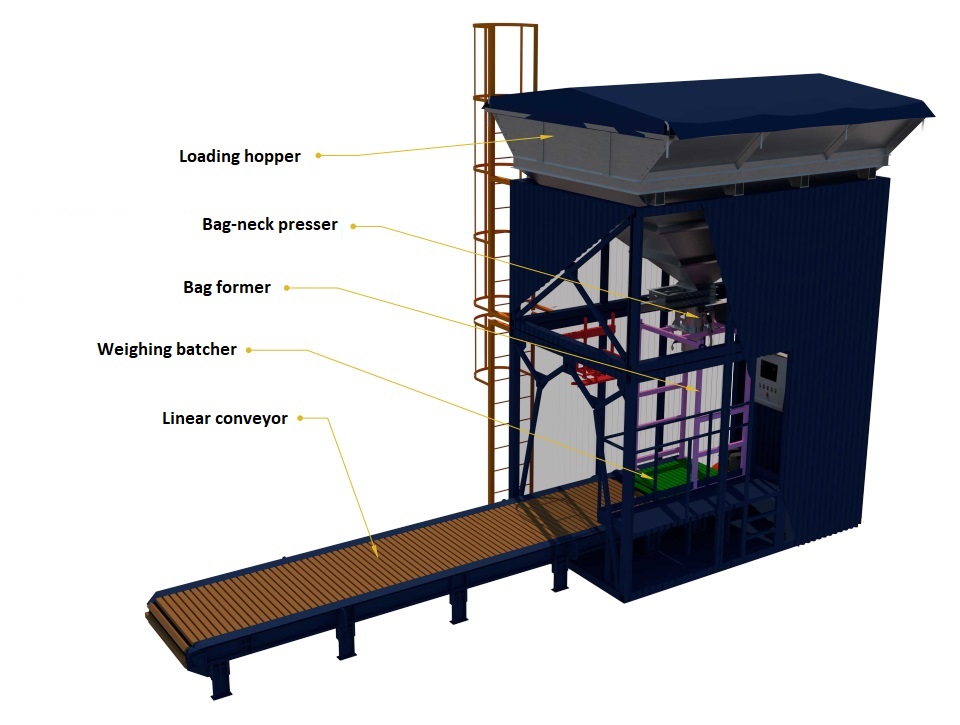

MFP-60

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 60 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 13;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 9.80 m³;
  • Discharge conveyor gross weight with bags (big bag) – 6.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 16,00 t.
  • Operation personnel – 2 employees.
Watch the video
Order now

MFP-60

  • 32133
  • 2121212

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 60 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 13;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 9.80 m³;
  • Discharge conveyor gross weight with bags (big bag) – 6.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 16,00 t.
Order now

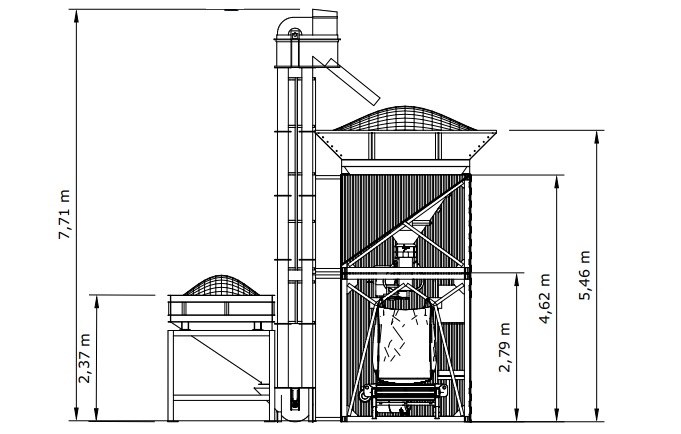

  • 5677
  • 5345345

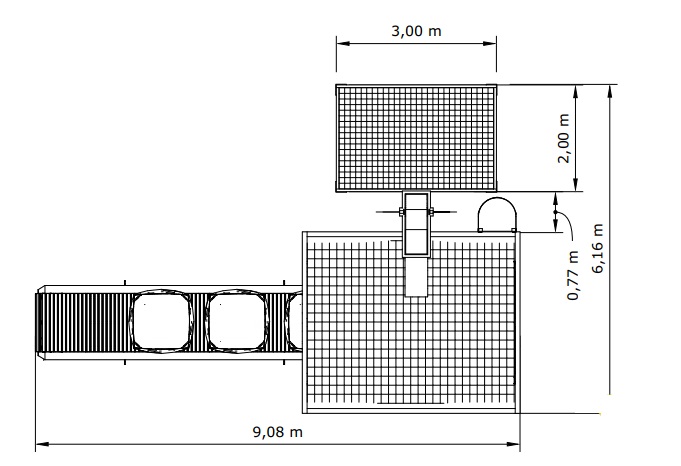

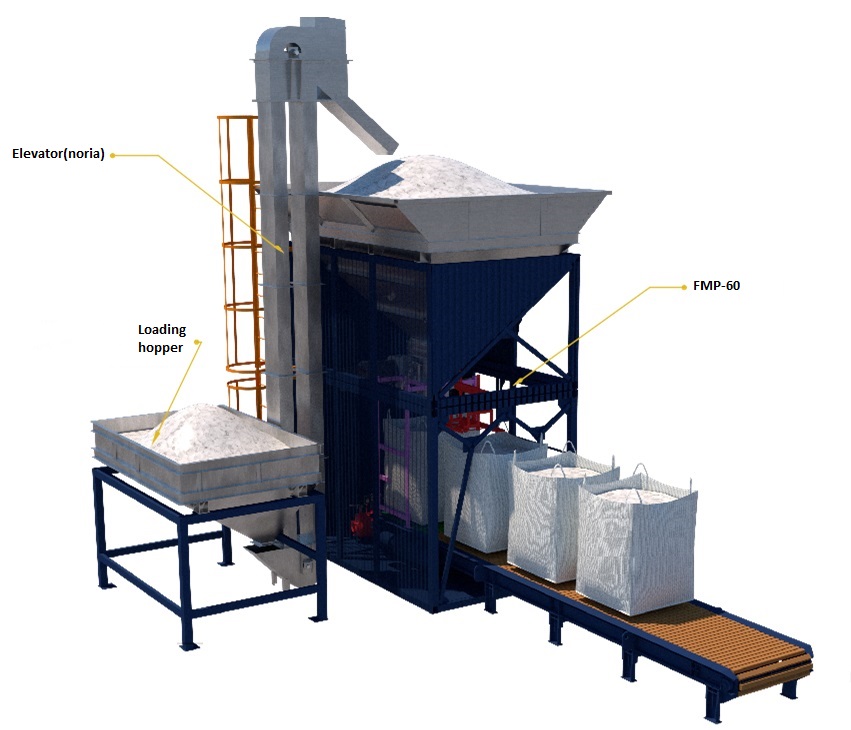

Elevator (noria) for MFP-60

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 60 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 13;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 9.80 m³;
  • Discharge conveyor gross weight with bags (big bag) – 6.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 16,00 t.
  • Operation personnel – 2 employees.
Watch the video
Order now

Elevator (noria) for FMP-60

  • 5677
  • 5345345

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 60 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 13;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 9.80 m³;
  • Discharge conveyor gross weight with bags (big bag) – 6.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 16,00 t.
Order now

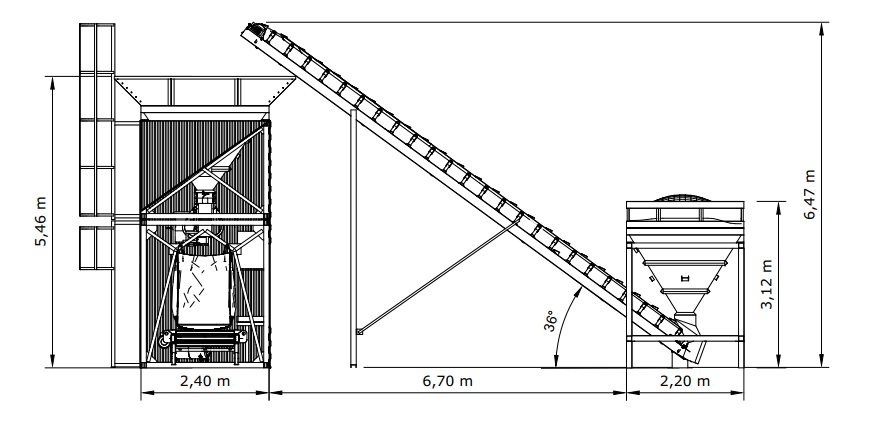

  • 4326
  • 8748

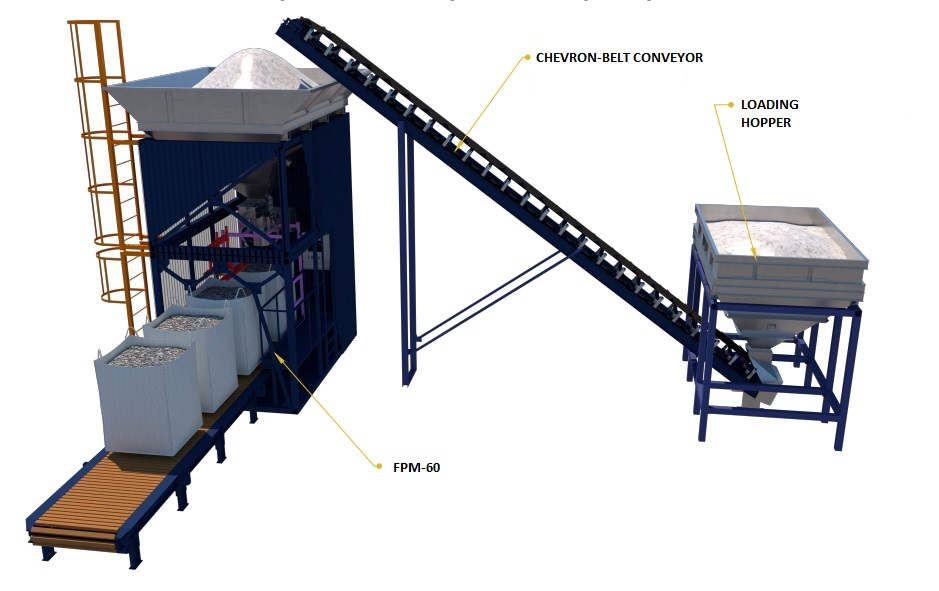

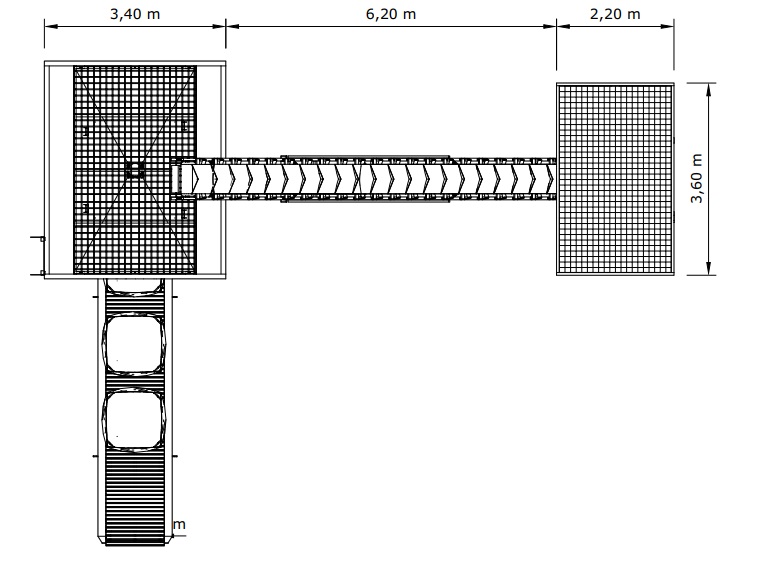

Chevron conveyor for MFP-60

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 60 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 13;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 9.80 m³;
  • Discharge conveyor gross weight with bags (big bag) – 6.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 16,00 t.
  • Operation personnel – 2 employees.
Watch the video
Order now

Chevron conveyor for FMP-60

  • 4326
  • 8748

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 60 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 13;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 9.80 m³;
  • Discharge conveyor gross weight with bags (big bag) – 6.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 16,00 t.
Order now

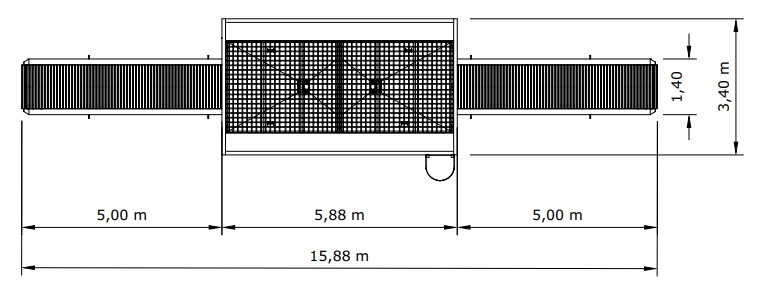

  • 98651
  • 6853795356

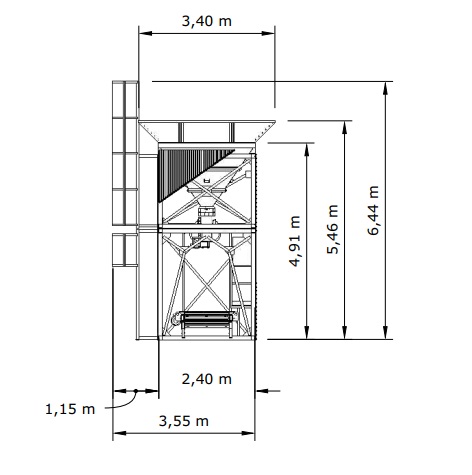

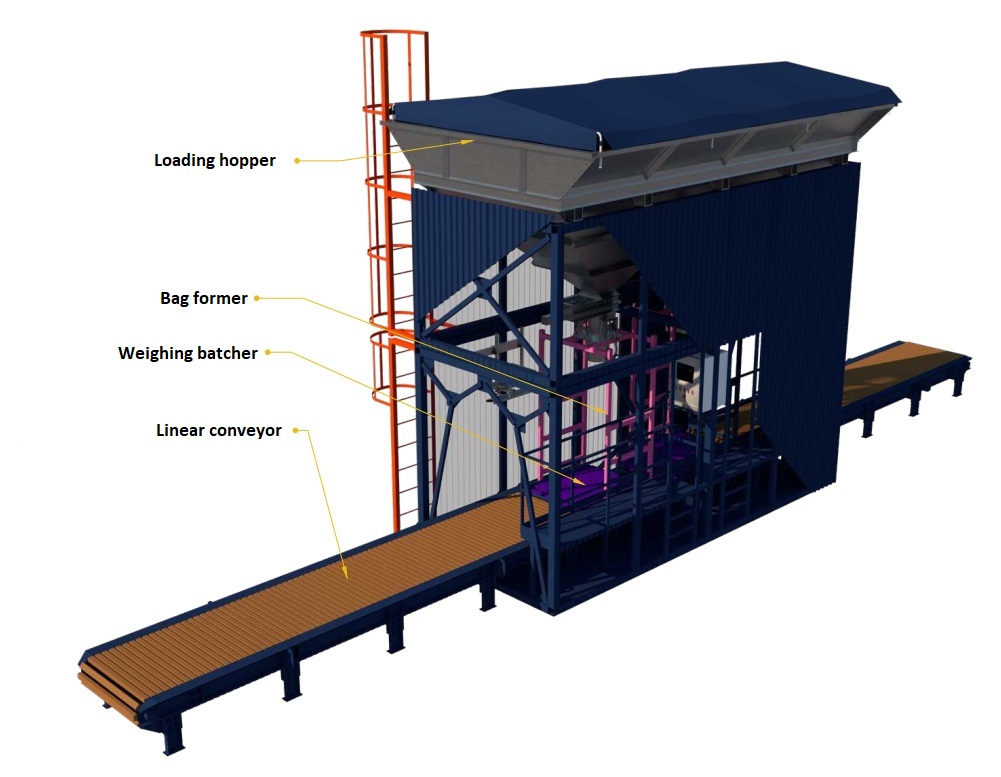

MFP-120

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 120 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 25;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 20.22 m³;
  • Discharge conveyor gross weight with bags (big bag) – 13.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 32,00 t.
  • Operation personnel – 4 employees.
Watch the video
Order now

FMP-120

  • 98651
  • 6853795356

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 120 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 25;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 20.22 m³;
  • Discharge conveyor gross weight with bags (big bag) – 13.24 t;
  • Packing part of the MFP: Gross weight (loaded) – 32,00 t.
Order now

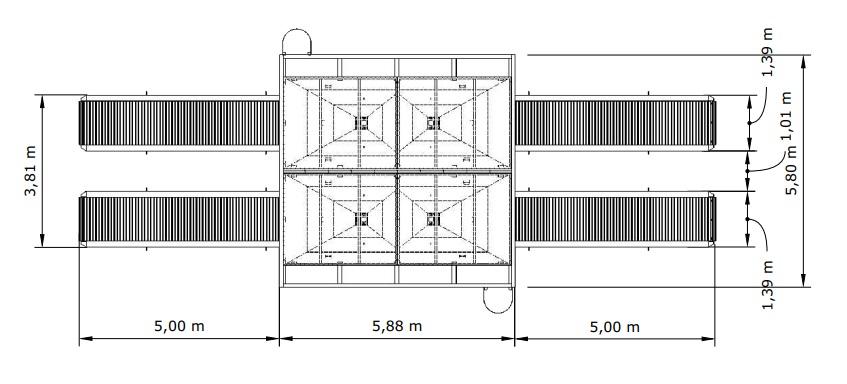

  • 07580806
  • 43627247

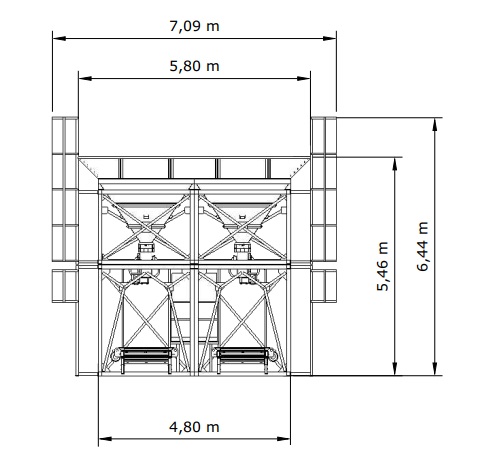

MFP-240

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 240 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 50;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 40.50 m³;
  • Discharge conveyor gross weight with bags (big bag) – 26.48 t;
  • Packing part of the MFP: Gross weight (loaded) – 62,00 t.
  • Operation personnel – 8 employees.
Watch the video
Order now

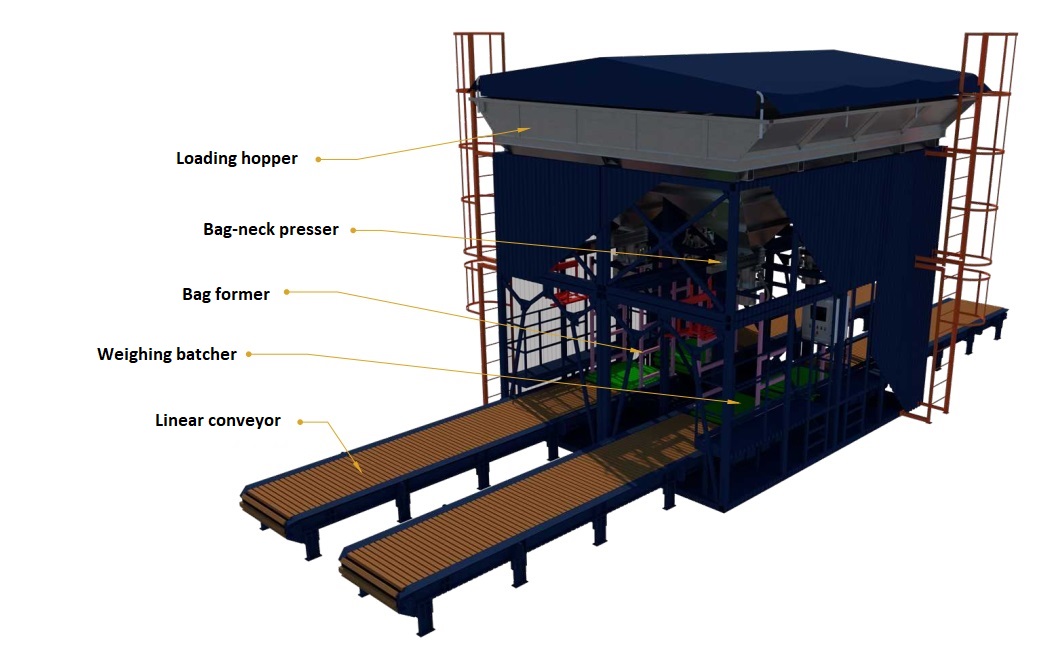

FMP-240

  • 07580806
  • 43627247

Specifications.

  • Type – Mobile, collapsible;
  • Maximum capacity – 240 tons/hour;
  • Module control – Electropneumatic;
  • Power supply from the AC network with a frequency of 50 Hz, voltage: electric motors – three-phase – 380 ± 38V;
  • Power consumption, kW – no more than 50;
  • Compressed air pressure, MPa (kgf/cm2) – 0.5 ± 0.1 (5 ± 1);
  • The volume of the loading hopper is 40.50 m³;
  • Discharge conveyor gross weight with bags (big bag) – 26.48 t;
  • Packing part of the MFP: Gross weight (loaded) – 62,00 t.
Order now
  • 769
  • 21142235

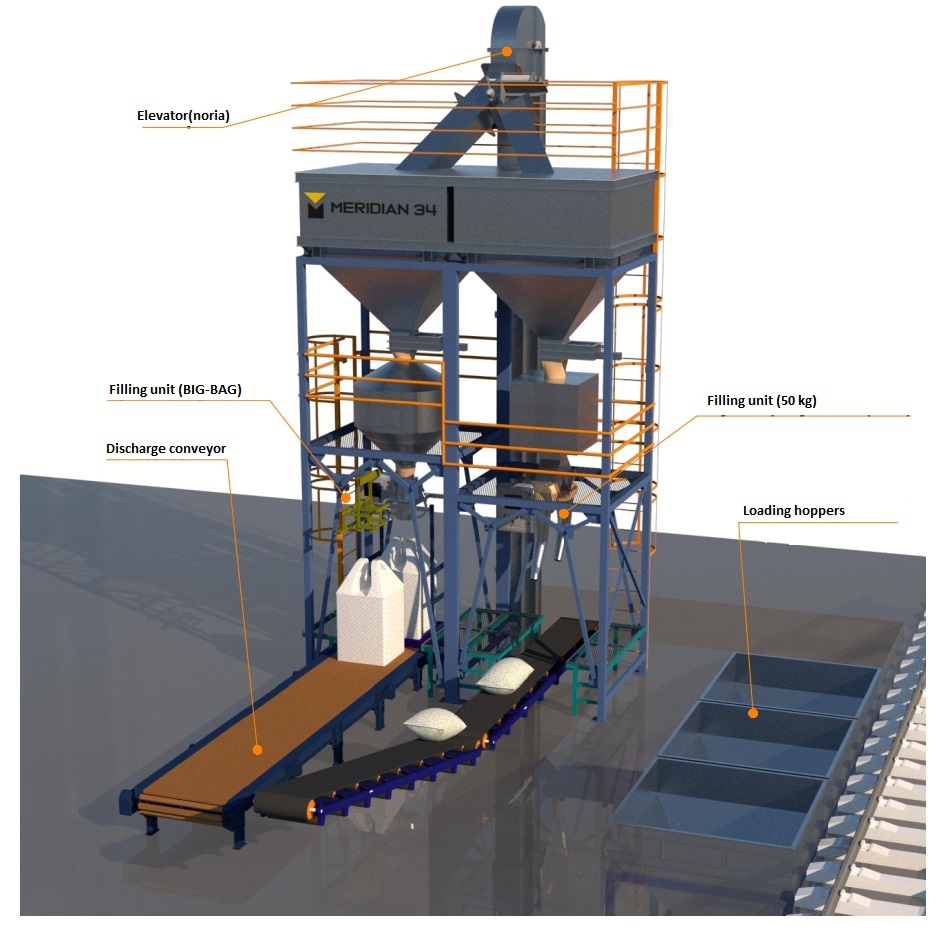

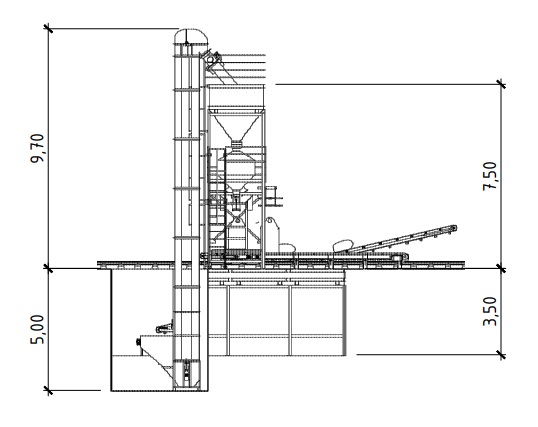

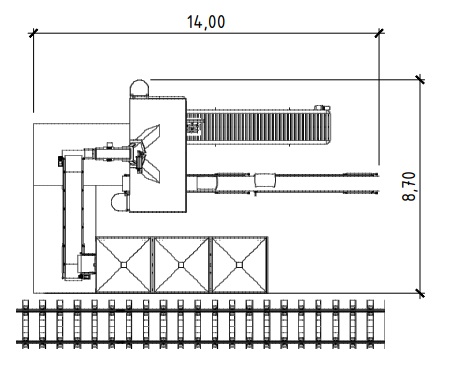

Packer BIG-BAG + 50 kg "PROMETHEUS"

Specifications.

  • BIG-BAG capacity – 60 tons per hour;
  • 50 kg capacity – 15 tons per hour;
  • Operating power consumption – 45 kWh;
  • Number of employees – 3 employees;
Watch the video
Order now

Packer BIG-BAG + 50 kg "PROMETHEUS"

  • 769
  • 21142235

Specifications.

  • BIG-BAG capacity – 60 tons per hour;
  • 50 kg capacity – 15 tons per hour;
  • Operating power consumption – 45 kWh;
  • Number of employees – 3 employees;
Order now

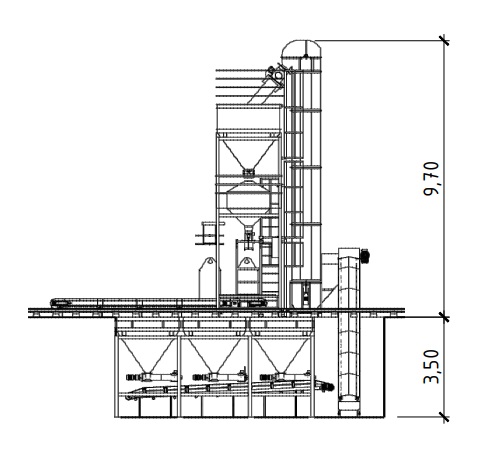

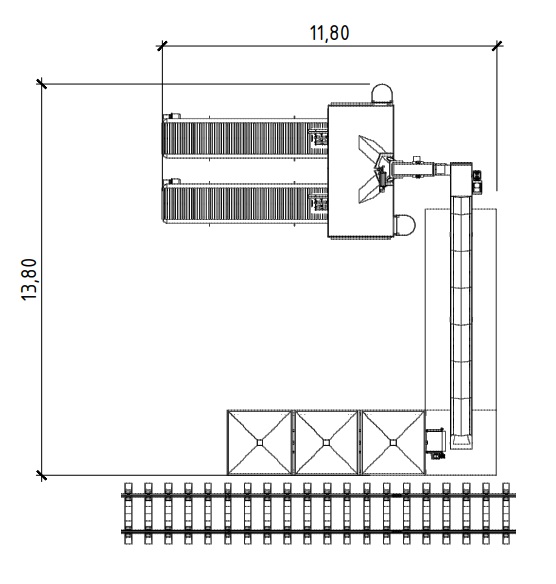

  • 8648
  • 75567

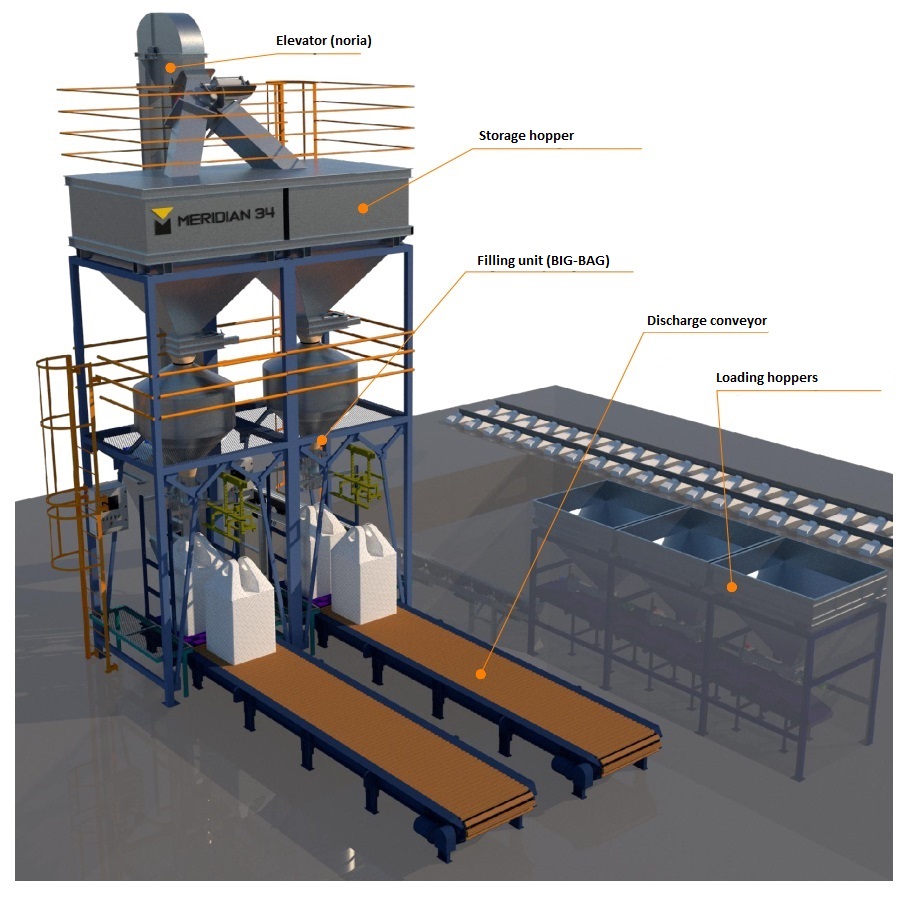

Packer BIG-BAG "PROMETHEUS"

Specifications.

  • BIG-BAG capacity – 120 tons per hour;
  • Operating power consumption – 45 kW/h;
  • Number of employees – 3 employees;
Watch the video
Order now

Packer BIG-BAG "PROMETHEUS"

  • 8648
  • 75567

Specifications.

  • BIG-BAG capacity – 120 tons per hour;
  • Operating power consumption – 45 kW/h;
  • Number of employees – 3 employees;
Order now

Additional equipment

Polyethylene liner sealer – used for hermetic sealing of polyethylene liner.

Production process control and management system using a mobile device.
