Installations for the production of liquid complex fertilizers (LCF)

Installations for the production of liquid complex fertilizers (LCF) - Meridian 34

Equipment for the production of liquid complex fertilizers

Support and training

Meridian 34 specialists guarantee commissioning of modules and comprehensive training of personnel. We also provide your employees with methodological materials like "Fundamentals of the mineral fertilizer solutions' production" and technical manuals.

Technical manuals

" Solutions' production of nitrogen fertilizers UAN, UAN+S".
"Production of complex fertilizer NP 10-30".
"Production of complex NPK fertilizers".
“Production of NPK+S fertilizer solutions for foliar application”.
"Solutions' production of starting fertilizers NPK, NPK+S".
" Solutions' production of mineral fertilizers with trace elements and their compatibility".
"Technological maps for the solutions' production of mineral fertilizers and suspensions".

• Controlled quality
• Own production
• Fertilizer savings
• Ease of operation

Equipment with a high degree of automation of technological processes for the production of UAN (urea-ammonium mixture) and liquid fertilizers (liquid complex fertilizers).

The product is produced by controlled connection process and dissolution of dry and liquid components followed by filtration ready solution up to 130 (!) microns, with total productivity from 4 to 20 or more tons per hour.

The warranty period is 24 months.
This technology allows you to produce quality liquid fertilizers of nitrogen (N) group, complex (NPK) group of 6 bulk macro-components (monoammonium phosphate, monopotassium phosphate, potassium hydroxide, ammonium nitrate, urea) and liquid micro-components (ammonia water, phosphoric acid, zinc chelate, magnesium molybdenum, iron, etc.).

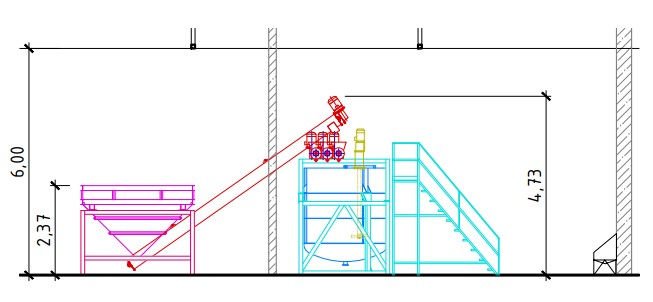

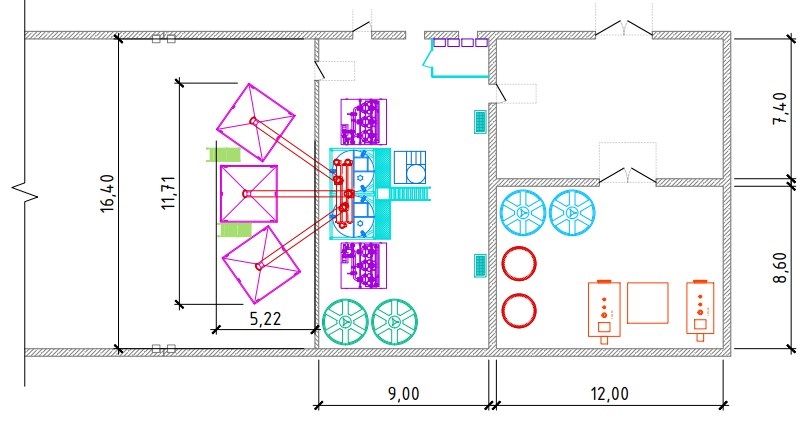

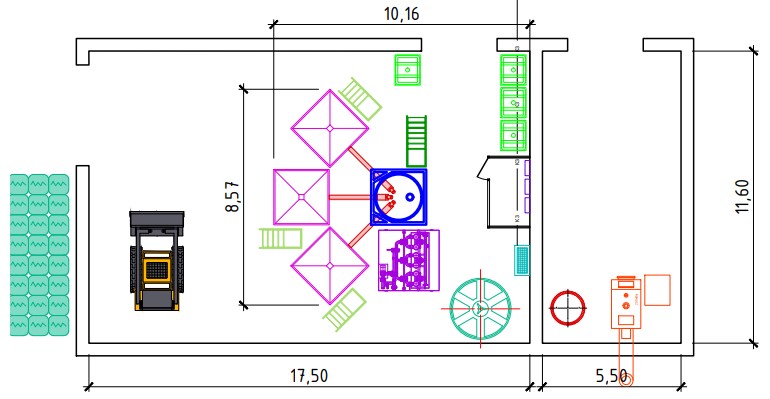

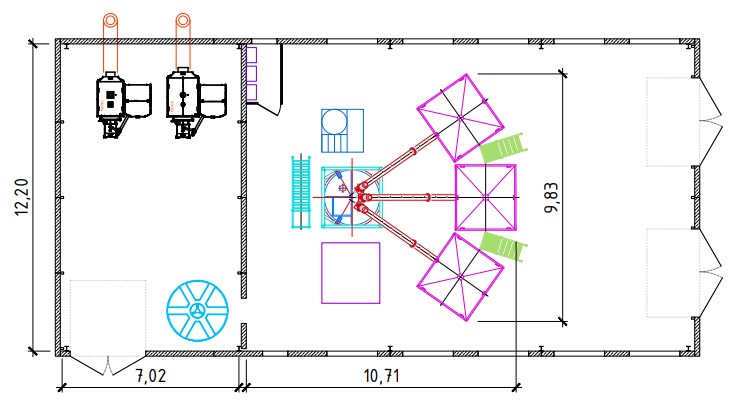

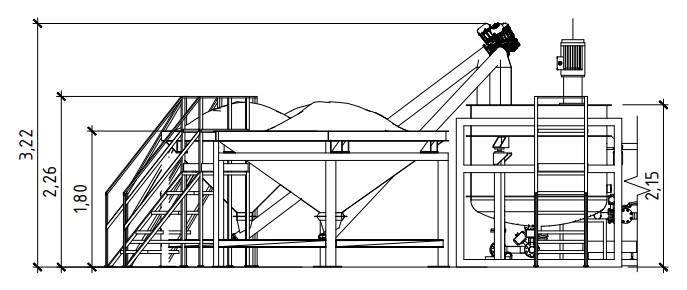

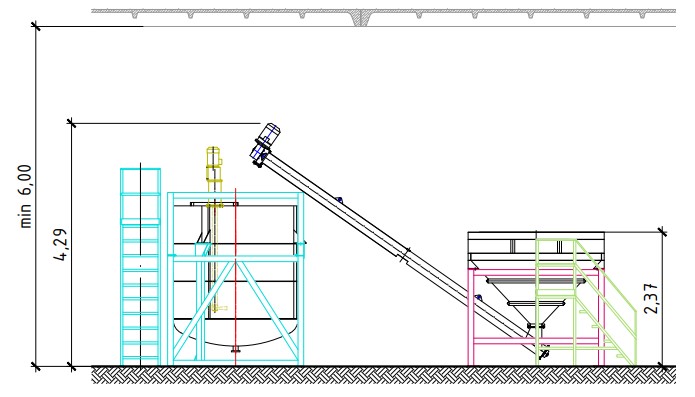

The process flow diagram is developed considering the optimal arrangement of the line units based on the customer’s technical specifications, the dimensions of the existing premises or new construction.

Technical conditions 28.3-35376105-004:23

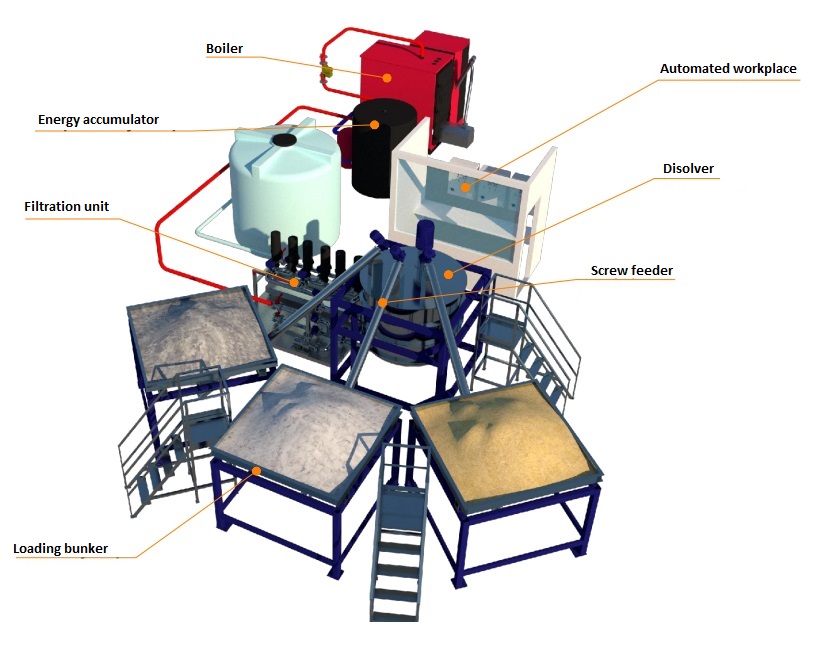

HYDRON Turbo-1 Bn

Technical characteristics

Maximum capacity for liquid fertilizer up to 130 t/day, 6 t/hour.
Maximum capacity for UAN up to 75 t/day, 3.5 t/hour;
Power consumption – up to 25 kW/hour;
Water supply of the plant – up to 50 m3 /hour;
Supply of dry components – up to 30 t/hour;
Ammonia water supply (25%) – up to 30 m3 /hour;
Maintenance staff – 2 employees.

Watch the video

Order now

Technical conditions 28.3-35376105-004:23

HYDRON Turbo-1 Bn

Technical characteristics

Maximum capacity for liquid fertilizer up to 130 t/day, 6 t/hour.
Maximum capacity for UAN up to 75 t/day, 3.5 t/hour;
Power consumption – up to 25 kW/hour;
Water supply of the plant – up to 50 m3 /hour;
Supply of dry components – up to 30 t/hour;
Ammonia water supply (25%) – up to 30 m3 /hour;
Maintenance staff – 2 employees.

Watch the video

Order now

Technical conditions 28.3-35376105-004:2023

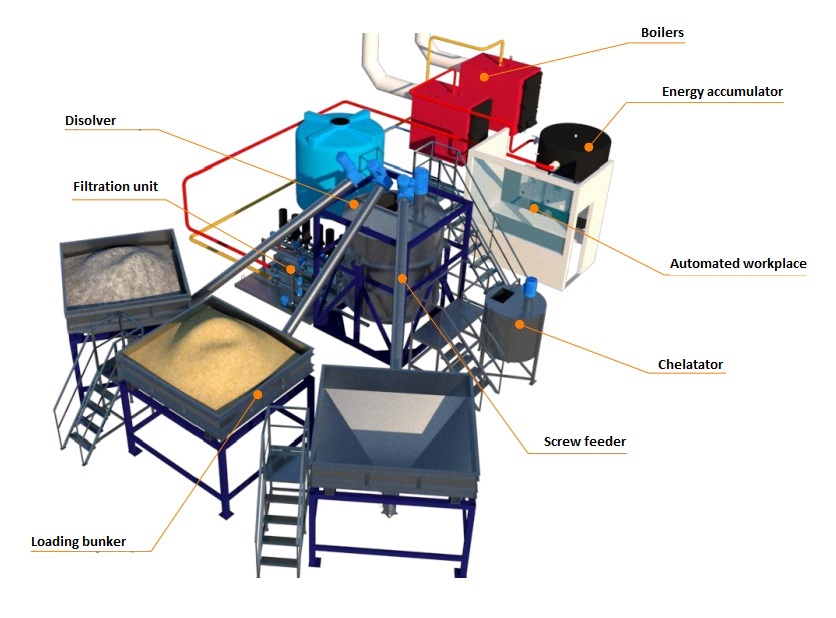

Hydron Turbo-3 Bn

Technical characteristics

Maximum capacity for liquid fertilizers – up to 250 tons per day, 10 tons per hour.
Maximum capacity for UAN – up to 150 tons per day, 7 tons per hour;
Operating power consumption – up to 45 kW/h;
Water supply of the plant – up to 60 m3 /hour;
Supply of dry components – up to 50 t/hour;
Supply of ammonia water (25%) – up to 30 m3 /hour;
Service personnel – 2 employees.

Watch the video

Order now

Technical conditions 28.3-35376105-004:2023

Hydron Turbo-3 Bn

Technical characteristics

Maximum capacity for liquid fertilizers – up to 250 tons per day, 10 tons per hour.
Maximum capacity for UAN – up to 150 tons per day, 7 tons per hour;
Operating power consumption – up to 45 kW/h;
Water supply of the plant – up to 60 m3 /hour;
Supply of dry components – up to 50 t/hour;
Supply of ammonia water (25%) – up to 30 m3 /hour;
Service personnel – 2 employees.

Watch the video

Order now

Technical conditions 28.3-35376105-004:2023

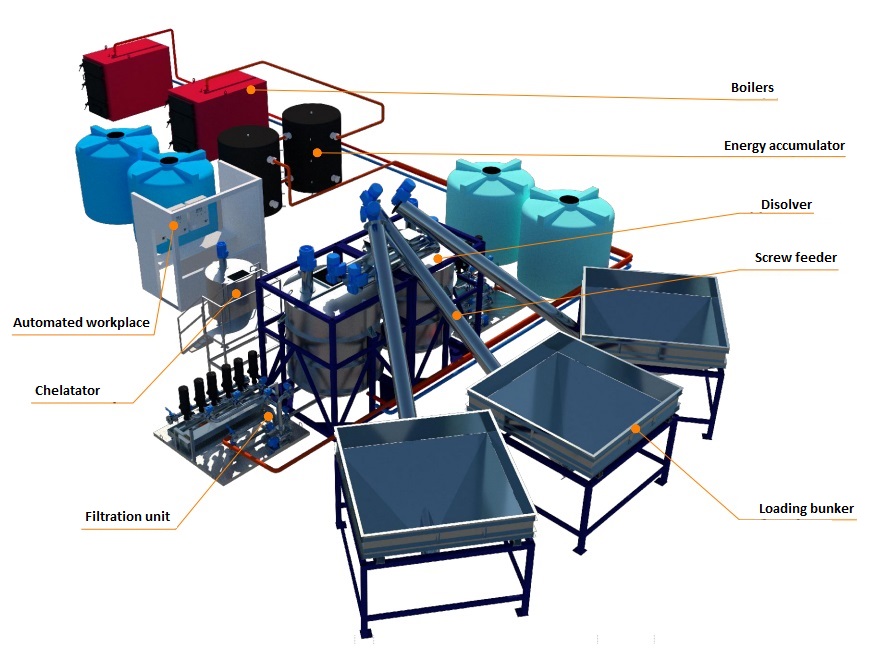

Hydron Turbo-3 Bn DUO MAX

Technical characteristics

Maximum capacity of the machine is up to 500 tons per day, 20 tons per hour.
Maximum capacity for UAN – up to 300 tons per day, 14 tons per hour.
Operating power consumption – up to 85 kW/h
Water supply of the plant – up to 60 m3/hour.
Supply of dry components – up to 60 tons per hour
Ammonia water supply (25%) – up to 60 m3/hour.
Number of personnel – 5 employees

Watch the video

Order now

Technical conditions 28.3-35376105-004:2023

Hydron Turbo-3 Bn DUO MAX

Technical characteristics

Maximum capacity of the machine is up to 500 tons per day, 20 tons per hour.
Maximum capacity for UAN – up to 300 tons per day, 14 tons per hour.
Operating power consumption – up to 85 kW/h
Water supply of the plant – up to 60 m3/hour.
Supply of dry components – up to 60 tons per hour
Ammonia water supply (25%) – up to 60 m3/hour.
Number of personnel – 5 employees

Watch the video

Order now

Additional equipment

Mixture heating system

Used in the production of UAN (Carbamide-Ammonia Mixture).
Fuel – propane, methane, diesel fuel, pellets

Dry Ingredients Automated Feeding System

Provides continuous operation of the equipment in automatic mode.
*Recommended for fixed installations.

Automation of the operator’s workplace (AWP)

SCADA production process automated control system.
It is part of the automated process control system, ASKUE, environmental monitoring system.
Provides online monitoring and remote control of the technological process. It also displays the main indicators (density, acidity, temperature of flows and loads) in dynamic mode.

The system of control and management of the production process using a mobile device

Allows online monitoring and control of the production process remotely using a gadget.
